CX 3.5mm 3 Poles Connector Soldering Machine ISO9001

Name: CX 35mm 3 Poles Connector Soldering Machine ISO9001
Brand: CHENXIN
Price: 1 USD

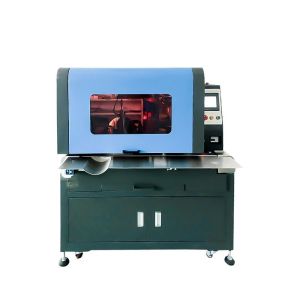

China CX 3.5mm 3 Poles Connector Soldering Machine ISO9001 wholesale

Brand Name : CHENXIN

Model Number : CX-VS01

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1/Set

Price : Fob Shenzhen

Payment Terms : T/T

Supply Ability : 150 sets per month

Delivery Time : 10-15 working days

Packaging Details : wooden case

Soldering speed : 600-700pcs/hr

Soldering method : lead free

Temperature mode : thermostat soldering station

Power : 600W

Air pressure : 0.3-0.6Mpa

Dimension : 800mm*128mm*1380mm

Weight : 250kg

Warranty : 1 year. 24hr online technical guidance

Contact Now

CX-VS01 Automatic 3.5mm 3 Poles Male Stereo Phono Solder Adapter Connector Soldering Machine

Features:

This equipment is a dedicated soldering machine for 3.5 audio plugs. With a perfect soldering process and excellent quality, it saves labor to a great extent and solves the problem of the cumbersome soldering process and harsh environment.

The machine is easy to understand and stable in operation. Ordinary employees can operate the machine.

One machine is equivalent to 3-5 soldering technicians. The incoming materials have no quality problems, and the yield rate can reach 98%.

Application:

Support audio pin welding of 2 poles, 3 poles, and 4 poles.

Enameled wire, sheathed wire. 2 cores, 3 cores, 4 cores, 5 cores, 6 cores can be welded.

Strong compatibility, suitable for manufacturers with large and small round wires, flat wires, double parallel wires, and a wide variety of wires.

Technical parameter

Model and name of the machine	CX-VS01 automatic audio connector soldering machine
Voltage &Frequency	AC 220V 50Hz
Soldering speed	600-700pcs/hr
Soldering method	lead free
Temperature mode	thermostat soldering station
Power	600W
Air pressure	0.3-0.6Mpa
Dimension	800mm128mm1380mm
Weight	250kg

Finished product:
